Janhoo 1310nm Butterfly SOA Semiconductor Optical Amplifier

Name: Janhoo 1310nm Butterfly SOA Semiconductor Optical Amplifier
Brand: JHBF
Price: 550.00 USD

Wholesale Janhoo 1310nm Butterfly SOA Semiconductor Optical Amplifier from china suppliers

Model Number : JSA-BT315G25

Place of Origin : TianJin

Brand Name : JHBF

Packaging Details : 1 pcs in 1 Cartoon

Supply Ability : 200 Piece/Pieces per Month

Price : $550.00/sets 1-9 sets

Type : soa Semiconductor Optical Amplifier

Use : optical communication

Warranty Time : 3 yrs

Network : None

Port : Tianjin

Product Name : Janhoo Semiconductor Optical Amplifier

Application : Semiconductor Optical Amplifier

Contact Now

Janhoo 1310nm Butterfly SOA Semiconductor Optical Amplifier

1310 Semiconductor Optical Amplifier SOA

Janhoo’s 1310nm Semiconductor Optical Amplifiers (SOAs) chip on carrier are designed for high gain, high powerful, low PDL and wide
band SOA which goes into the standard GR-468-CORE.

Janhoo Semiconductor Optical Amplifier Applications

* Semiconductor Optical Amplifiers (SOAs) in butterfly or small box packages goes for 40G/100G LWDM High-Speed amplification.
* Improve the budget of optical power, integrate in ROSA and TOSA of 100G optical transceiver.

* It can be Integrated in Silicon-based integrated photonic devices, compensate for the loss of 1310nm optical signals.

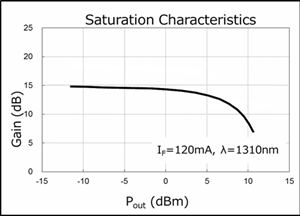

Janhoo Semiconductor Optical Amplifier Typical Characteristics

Janhoo Semiconductor Optical Amplifier Specifications(chip temperature @25℃)

Parameter	Symbol	Condition	Min.	Typ.	Max.	Unit
Drive Current	If		---	250	350	mA
Operating Wavelength	λ	T=25℃	1260	1310	1340	nm
3dB Optical Bandwidth	Dλ3dB	@-3dB	40	70	---	nm
Small Signal Gain	Gmax	If=120mA Pin=-25dBm	25	---	---	dB
Gain Ripple	DG			0.5	1	dB
Saturation Output Power	Psat	If=120mA	10	---	---	dBm
Noise Figure	NF		---	7.5	---	dB
Polarization Dependent Gain	PDG		---	1.0	2.0	dB
TEC Drive Current	ITEC			---	1.8	A
TEC Drive Voltage	VTEC			---	3.4	V
Thermistor Resistance	Rtherm	T=25℃	9.5	10	10.5	KΩ
Air tightness		T=25℃	1*10-12	1*10-11	1*10-8	Pa.m3/s
Power Consumption	P	---	---	---	4	W
Working Temperature	TC	I=Iop	-10	---	70	°C
Storage Temperature	Tstg	---	-40	---	85	°C

Janhoo Semiconductor Optical Amplifier STRUCTURE

Janhoo 1310nm Butterfly SOA Semiconductor Optical Amplifier Images
